DESCRIPTION

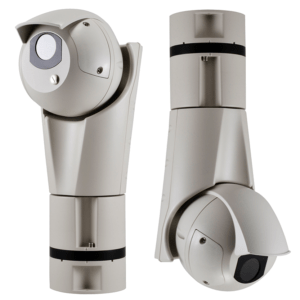

ULISSE EVO THERMAL is a PTZ thermal camera, developed to provide a preventive video surveillance system in critical infrastructures, transport, traffic, rail (in compliance with the standards for railway applications) and for fire detection.

The thermal camera offers temperature detection based on the 4 central pixels of the image and the option to send an alarm based on temperature rules. As well as this, the advanced version, can measure the temperature of a specific object at any point in the image just defining an ROI.

ULISSE EVO THERMAL maintains maximum operating efficiency with temperatures from -40°C (-40°F) to +65°C (149°F), while the levels of protection IK10, IP66/IP67/IP68, NEMA Type 4X and Type 6P guarantee maximum resistance against dust and bad weather, strong impact and vandalism.

ULISSE EVO THERMAL offers an unrivalled corrosion resistance, thanks to the special aluminum surface treatments and the technopolymer used for its construction.

The modern, linear design of ULISSE EVO THERMAL combines maximum strength and operational reliability with greatly reduced weight. This means easy and quick assembly and therefore lower installation costs and zero maintenance.

ULISSE EVO THERMAL can be installed in different ways, even in the inverted position typical of the speed domes, using the large variety of brackets and adaptors available to satisfy every installation need. The brackets are also available with quick connectors for Ethernet/PoE, for power and I/O, which allow fast and easy installation and maintenance.

ULISSE EVO THERMAL is available in two standard colours gray-white (RAL9002) or black (RAL9005) to suit specific application requirements.

KEY FEATURES
    • Thermal camera:

Image Device: Uncooled VOx microbolometer

Resolution: 336×256 or 640×512

Lenses: 35mm, 25mm, 19mm, 13mm, 9mm

Image update frequency: 7.5Hz or 30Hz

  • Radiometric analysis
  • Video compression: H.264/AVC, MJPEG, JPEG and MPEG4
  • Complies with ONVIF, Profile S and Profile Q
  • Digitally signed firmware
  • Complies with ONVIF Security Service specifications
  • Up to 3 independent SD video streams
  • 2 alarm inputs and 2 relay outputs
  • Variable speed: from 0.1°/s up to 250°/s horizontal and vertical movement
  • Horizontal continuous rotation, vertical from -90° up to +90°
  • Position accuracy: 0.05°
  • Up to 250 Presets
  • Speed proportional to Zoom
  • Power supply: 24Vac, 24Vdc, PoE 90W
  • Can be also installed in upside-down position (in speed-dome mode)

PDF Downloads:

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
