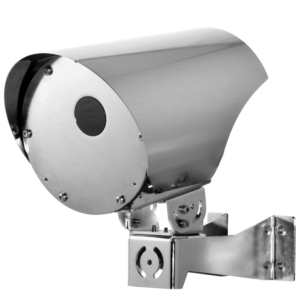

The NTX is an IP68 stainless steel thermal camera, developed to provide an efficient and preventative surveillance system in the most critical environmental conditions.

The NTX thermal camera offers temperature detection based on the 4 central pixels of the image, and with the advanced version, the temperature of a specific object can be measured at any point in the image by means of defining a specific area. As well as this, the radiometric functions offer the option to set a temperature limit, beyond which an alarm will be raised.

These functions are necessary where fire prevention is required or in applications such as monitoring industrial processes or critical equipment, where the ability to identify something quickly and accurately, thus preventing problems or failures and keeping intervention times to a minimum, is essential.

The NTX can export all the data necessary for a centralised management of video feeds, data and alarms, and make it available to VMS via the ONVIF Profile S and Profile Q communication protocols.

The NTX camera is made entirely from electropolished AISI316L stainless steel and stands out thanks to its compact design and light weight. This, and the fact that it can be connected quickly, makes installation and maintenance easier. The modular support for wall, ceiling or parapet is supplied as standard.

The NTX has obtained Lloyd’s Register Marine Type Approval certification for the maritime and naval sector and complies with the standard for railway applications. The fact that the NTX is extremely sturdy and of high quality means it is ideal for the most demanding applications in the marine and industrial sectors, in critical infrastructures, power plants and transport sector, including railways and motorway tunnels.

Protect Perimeters Anytime, Anywhere

KEY FEATURES

    • Made of electro-polished stainless steel AISI 316L
    • Quick connectors
    • Thermal camera

Image Device: Uncooled VOx microbolometer

Lenses: 35mm, 25mm, 19mm, 13mm, 9mm

Resolution: 336×256 or 640×512

Image update frequency: 7.5Hz or 30Hz

  • 1 input for remote reset and 1 relay output
  • Power supply: 24Vdc/24Vac, PoE+
  • Operating temperature: from -40°C (-40°F) up to +65°C (149°F)
