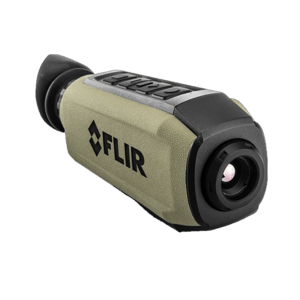

The FLIR Scion® OTM captures clear thermal imaging and leverages a refined user interface to quickly detect objects of interest in complete darkness and through glaring light or haze. Built around FLIR’s powerful Boson core, the Scion OTM produces 9 or 60 Hz thermal imaging and records geotagged video and still images for playback long after the day is done. A rugged, IP67-rated housing and intuitive controls allow single-hand operation in harsh weather conditions, maintaining reliable thermal imaging in the most demanding outdoor environments.

Highlights
  • ONBOARD VIDEO AND IMAGE RECORDING

    Revisit every wildlife encounter in sharp thermal imaging with internal and microSD® expandable memory

  • REDESIGNED USER INTERFACE

    Polished menus allow quick thermal palette adjustments and provide easy access to new features such as picture-in-picture zoom, video recording, and GPS functionality.

  • TRUSTED THERMAL DETECTION

    The advanced image processing of FLIR’s Boson® thermal core and a vivid OLED display offer superb, unwavering vision in challenging environments.

Specifications

OVERVIEW

Weight

Without Batteries: 452 g; With Batteries 572 g

SYSTEM OVERVIEW

Detector Type

320 × 256

Eye Relief

16 mm

Internal Memory

2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)

Size

227 × 76.8 × 60.5 mm (9 × 3 × 2.4 in)

Color (housing)

Green / Black

Lens System

13.8 mm

Optical Magnification

1.5x

Display Focus

Manual

Core Technology

BOSON 12 µm Vox Microbolometer

CONNECTIONS & COMMUNICATIONS

Bluetooth

BLE 4.1+

USB

USB-C; Power In; Video Out; Video and Image File Transfer

Geo Positioning [GPS]

No

Video Recording

Yes

WiFi

Video Streaming, File Transfer

IMAGING & OPTICAL

Digital Zoom

1X | 2X | 4X

Field of View

16° × 12°

Focus

Refresh Rate

60 Hz

PHYSICAL

Mounting

¼-20 Tripod Mount

POWER

Auto Power Off

Yes

Battery Life

Up to 4.5 hours at 20°C

Battery Type

6x CR123A 3V Lithium Battery

PRESENTATION

Display

Quad-VGA (1280×960) High definition display

Image Capture

Yes

Temperature Imaging Modes

White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava

Viewing Modes

Scouting, Picture-in-Picture

Picture While Recording

Yes

Real Time Clock

Yes

DateTime Stamp

Yes

Magnetic Compass

Yes

Accelerometer

Yes

PDF Downloads:

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
