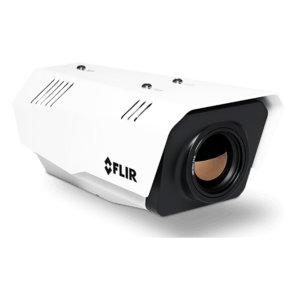

The Elara™ FC-Series ID is one of FLIR’s premium thermal security cameras for perimeter protection. The Elara FC-Series ID includes onboard video analytics capable of classifying human or vehicular intrusions, resulting in fewer false alarms. The Elara FC-Series ID also offers a wide range of high-performance lenses and multiple resolutions, giving greater flexibility in tailoring security systems to specific site conditions.
Best-in-class perimeter protection
Reliable onboard analytics
The Elara FC-Series ID accurately classifies humans and vehicles, and enables target hand-off to PTZ camera auto-tracking.
Industry-Leading Image Quality
The Elara FC-Series produces superior thermal image quality in low-contrast conditions using custom AGCs and Dynamic Detail Enhancement (DDE).
Choose from a wide range of high-performance lenses for optimal detection ranges in all conditions.
Long-Life, Uncooled VOx Microbolometer
Dimensions (L x W x H)
Without sunshield: 259 x 114 x 106 mm/10.2″ x 4.5″ x 4.2″ With sunshield: 282 x 129 x 115 mm/11.1″ x 5.1″ x 4.5″
<35mK for F# 1.0 optics
7.5 µm to 13.5 µm
Thermal Frame Rate
NTSC: 30 Hz – PAL: 25 Hz / 8.3 Hz
Camera: 3 Years Sensor: 10 Years
2.2kg (4.75 lbs.)
Compliance & Certifications
CE: EN55032; FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits)
EN 55024: 2010 and 55022: 2010 to 4.0kV on AC aux power lines; EN 50130-4:2011; IEC 62599-2:2010
Surge Immunity on Signal Lines
EN 55024: 2010 and 55022: 2010 to 4.0kV
Storage & Archive
Support for 32GB SD Card (not supplied)
The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
