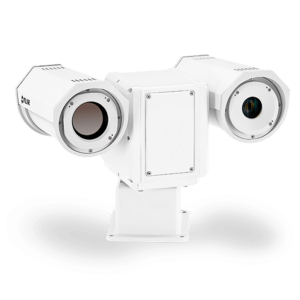

The FLIR Triton™ PT-Series HD is our most advanced dual-sensor security system, combining a cooled or uncooled 640 × 480 resolution thermal sensor, a 1080p HD visible-light imaging sensor, and a high speed, precision pan/tilt system. The Triton PT-Series HD integrates easily with FLIR United VMS 8.0, as well as other major third party video management systems, making it an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.

Protect Perimeters Anytime, Anywhere

Superior Image Quality

The Triton PT-Series HD’s thermal camera offers up to a 14x continuous zoom, while the low light HD camera has a 30x optical zoom.

Rugged Housing

The weather-resistant housing includes deicing and de-fogging capabilities, plus a changeable thermal payload cassette that significantly reduces maintenance time.

Designed for System Integration

When controlled using FLIR United VMS, enhanced capabilities are enabled, including automated PTZ tracking and fixed camera-target hand off.

Specifications

Overview

Detector Type

Long-Life, Uncooled VOx Microbolometer

Dimensions (L x W x H)

13.7″, 18.4″, 12.8″ (348mm, 467mm, 326 mm)

Focal Length

4.3 mm (wide) to 129.0 mm (tele)

Sensitivity

<35mK @ 25c F# 1.0

Thermal Frame Rate

NTSC: 30 Hz PAL: 25 Hz / 8.3 Hz

Weight

36 lbs. (16.4 kg)

Zoom

30X optical zoom with autofocus and 12X digital zoom

Thermal Array Format

640 × 480

Thermal E-Zoom

Continuous E-Zoom to 4×

Thermal Effective Resolution

307200.0

Thermal Focus Range

Athermalized, Focus-Free

Thermal Pixel Pitch

17 µm

Thermal Spectral Range

7.5 µm to 13.5 µm

Connections & Communications

Composite Video NTSC or PAL

Yes: Hybrid IP & Analog

Ethernet

Yes

External Analytics Compatible

Yes

Network APIs

FLIR SDK FLIR CGI ONVIF Profile S

Serial Control Interfaces

RS-232/-422; Pelco D, Bosch

Supported Protocols

IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP

Environmental

De-Icing/Anti-Icing

MIL-STD-810F, Method 521.1; – De-Icing

Humidity

0-95% relative

IP Rating (dust & water ingress)

IP66

Operating Temperature Range

-40°C to 70°C cold start

Shock

MIL-STD-810F «Transportation»

Storage Temperature Range

-55°C to 85°C

Vibration

IEC 60068-2-27

Imaging & Optical

Array format

640 × 480

f-number

F1.6 to F4.7

Field of view (FOV)

8.6°×6.6°

Lens Field of View

63.7° (wide end) to 2.3° (tele end)

Low Light Sensitivity

Color: 0.01 lx (F1.6, AGC on, 1/30s)

Noise Reduction

Yes (6 steps)

Sensor Illumination

Back Light Compensation

Sensor Type

Full HD 1080p 1/2.8-type Exmor R CMOS

WDR

120db

Thermal Image Settings

Auto AGC, Dynamic Detail Enhancement (DDE), Sensitivity

Measurement & Analysis

Programmable Presets

256.0

Power

Input Voltage

24 VDC (21-30 VDC) 24 VAC (21-30 VAC)

Power Consumption

24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters) 24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters)

PTZ

Pan Angle/Speed

Continuous 360°; 0.1° to 60°/sec

Tilt Angle – Speed

+90° to -90°; 0.1° to 30°/sec

Thermal Imaging

Focal Length – Thermal

26-105 mm

Video & Recording

Video Compression

Thermal: Two independent channels of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG

Video Image Uniformity Optimization

Automatic Flat Field Correction (FFC) – Thermal and Temporal Triggers

Video Streaming Resolution

Thermal: QVGA to VGA Visible: VGA to HD

Video Thermal AGC Modes

Linear AGC, Histogram AGC, Dynamic Detail Enhancement (DDE), Sensitivity

Video Thermal AGC Region of Interest [ROI]

Default, Presets and User definable to insure optimal image quality on subjects of interest



PDF Downloads:

Export Restrictions

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
